Standard Flange FTTH FTTB LC Quad Fiber Optical Adapters

Product Categories

ZGT Optical Comm Limited

Contact Now

Brand Name : ZGT

Model Number : ZZTAD-LC18-Q

Certification : ROHS,REACH ,IEC,GR326

Place of Origin : CHINA

MOQ : 100PCS

Price : Negotiable

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union

Supply Ability : 900K PER MONTH

Delivery Time : 3-5days

Packaging Details : Plastic bag

Application : FTTH FTTB FTTX Network,Network,Telecommunication/Fiber Optic CATV/Multimedia

Structure : one-piece housing

Product name : fiber optic adapter

Color : Multi color

Type : Singlemode

Insertion loss : ≤0.2dB

Contact Now

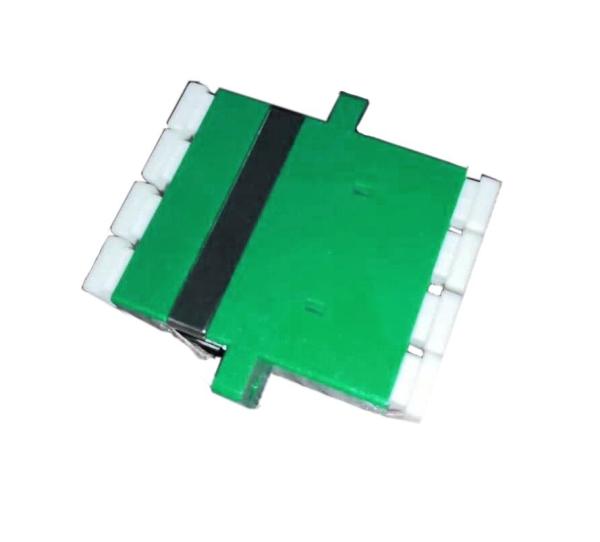

Fiber LC Adapter , LC Quad one-piece adapter with Standard Flange

Enviroment and Mechanical

Properties	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40C to +75C, 40 cycl
