Duplex Flangeless 9.3mm Height LC Fiber Optical Adapters

Product Categories
ZGT Optical Comm Limited
Contact Now

Duplex Flangeless 9.3mm Height LC Fiber Optical Adapters

  • 1
  • 2
  • 3

Brand Name : ZGT

Model Number : ZZTAD-LC18-D

Certification : RoHS

Place of Origin : CHINA

MOQ : 100PCS

Price : Negotiable

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union

Supply Ability : 900K PER MONTH

Delivery Time : 3-5days

Packaging Details : Plastic bag

Application : FTTH FTTB FTTX Network,Network,Telecommunication/Fiber Optic CATV/Multimedia

Product name : fiber optic adapter

Color : Green

Type : Singlemode

Insertion loss : ≤0.2dB

Contact Now

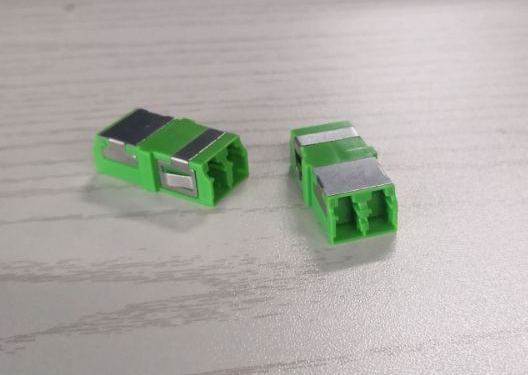

Fiber LC Adapter Duplex with internal Shutter, 9.3mm height, Flangeless

LC Duplex with internal shutter, flangeless adapter

Items Insertion Loss Repeatability Operating Temperature
SM/PC ≤0.2dB ＜0.2dB(500times) -40℃～+85℃
SM/APC ≤0.2dB ＜0.2dB(500times) -40℃～+85℃
MM/PC ≤0.2dB ＜0.2dB(500times) -40℃～+85℃

Parts Material Remark
Sleeve Zirconia
Housing PEI Flammability UL94 V-0
Dust cap PE Flammability UL94 V-0
Shutter Lid ABS Flammability UL94 V-0
Metal shutter Stainless steel

Serial Number: ZZTAD-LC18-D

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

Enviroment and Mechanical

Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40C to +75C, 40 cycl

Duplex Flangeless 9.3mm Height LC Fiber Optical Adapters
